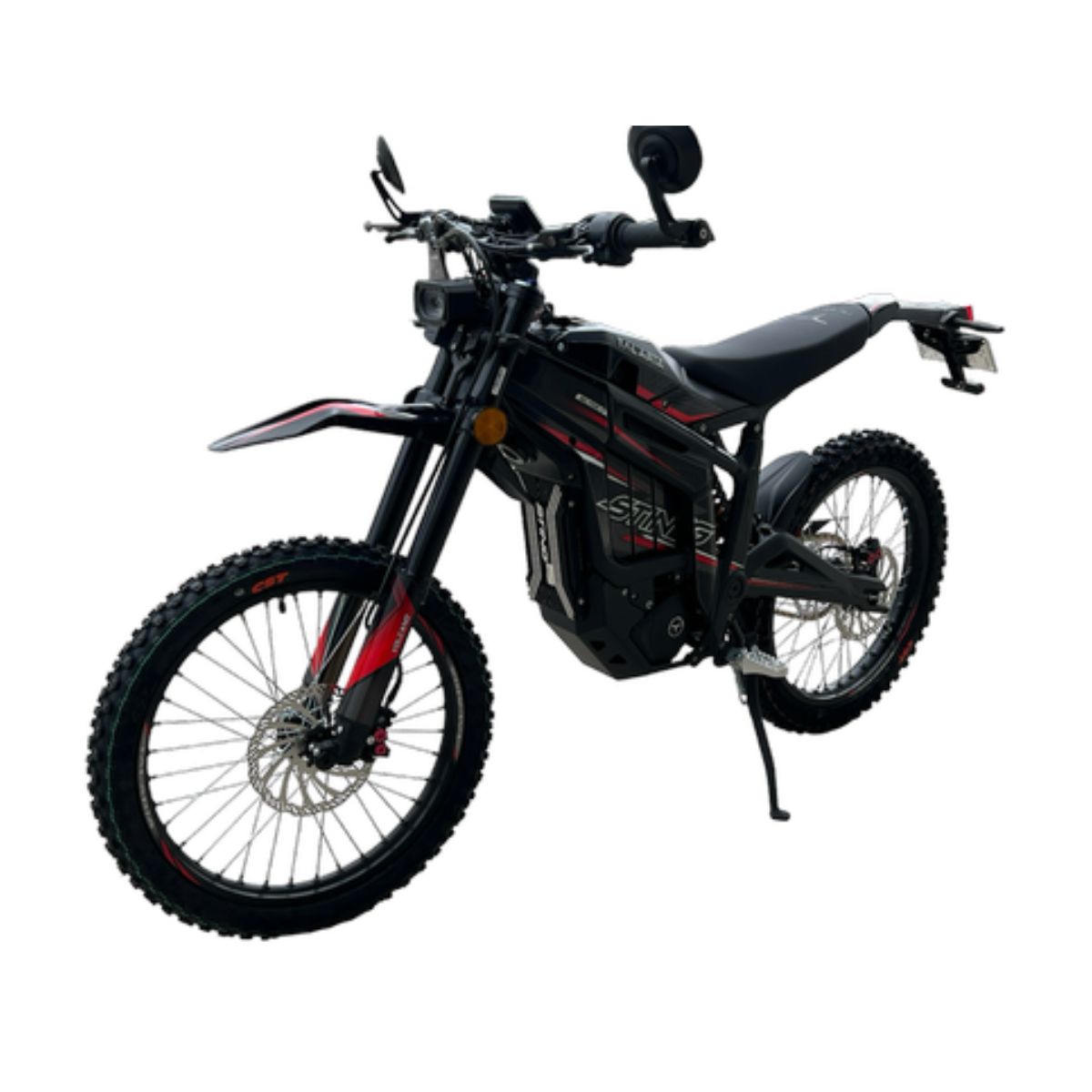

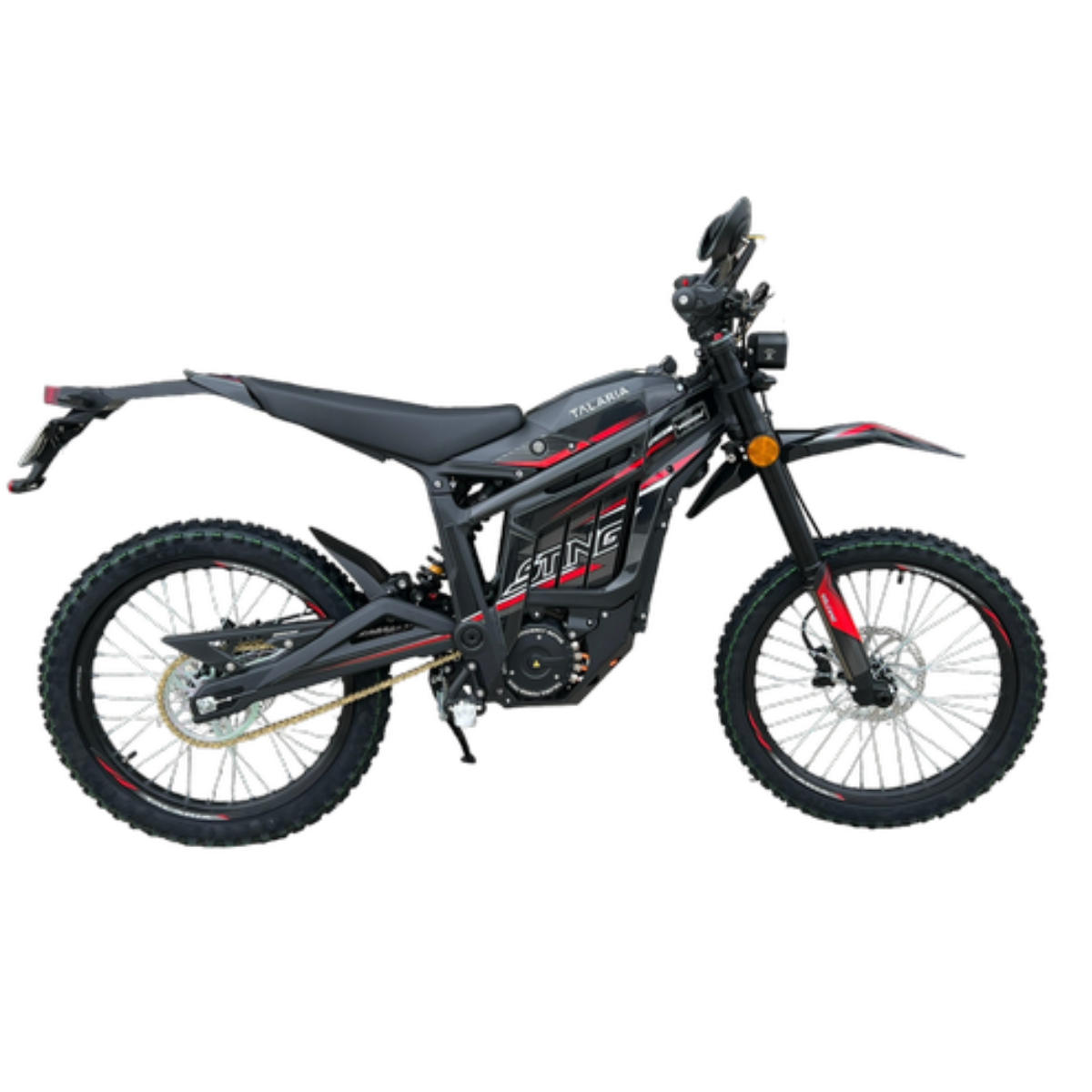

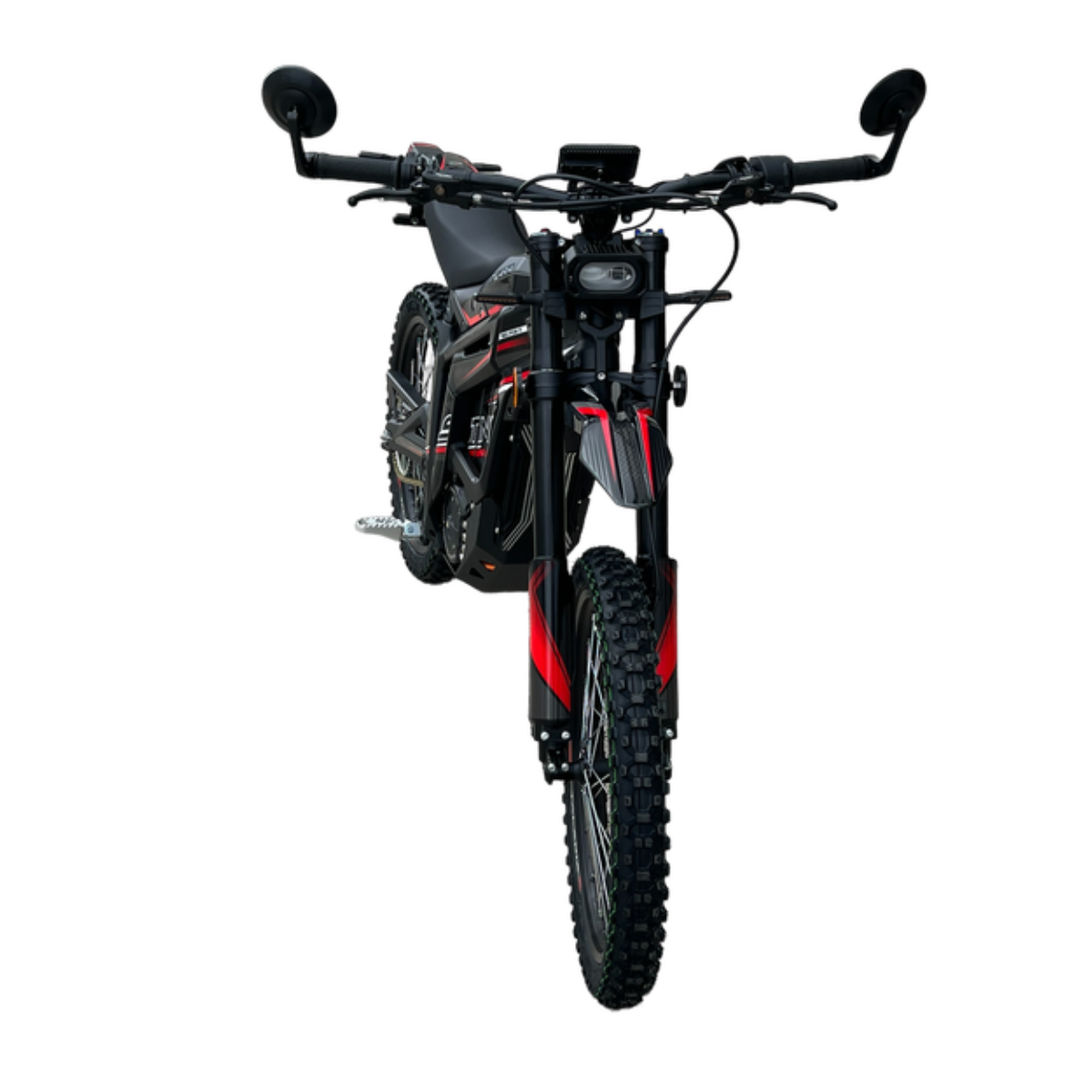

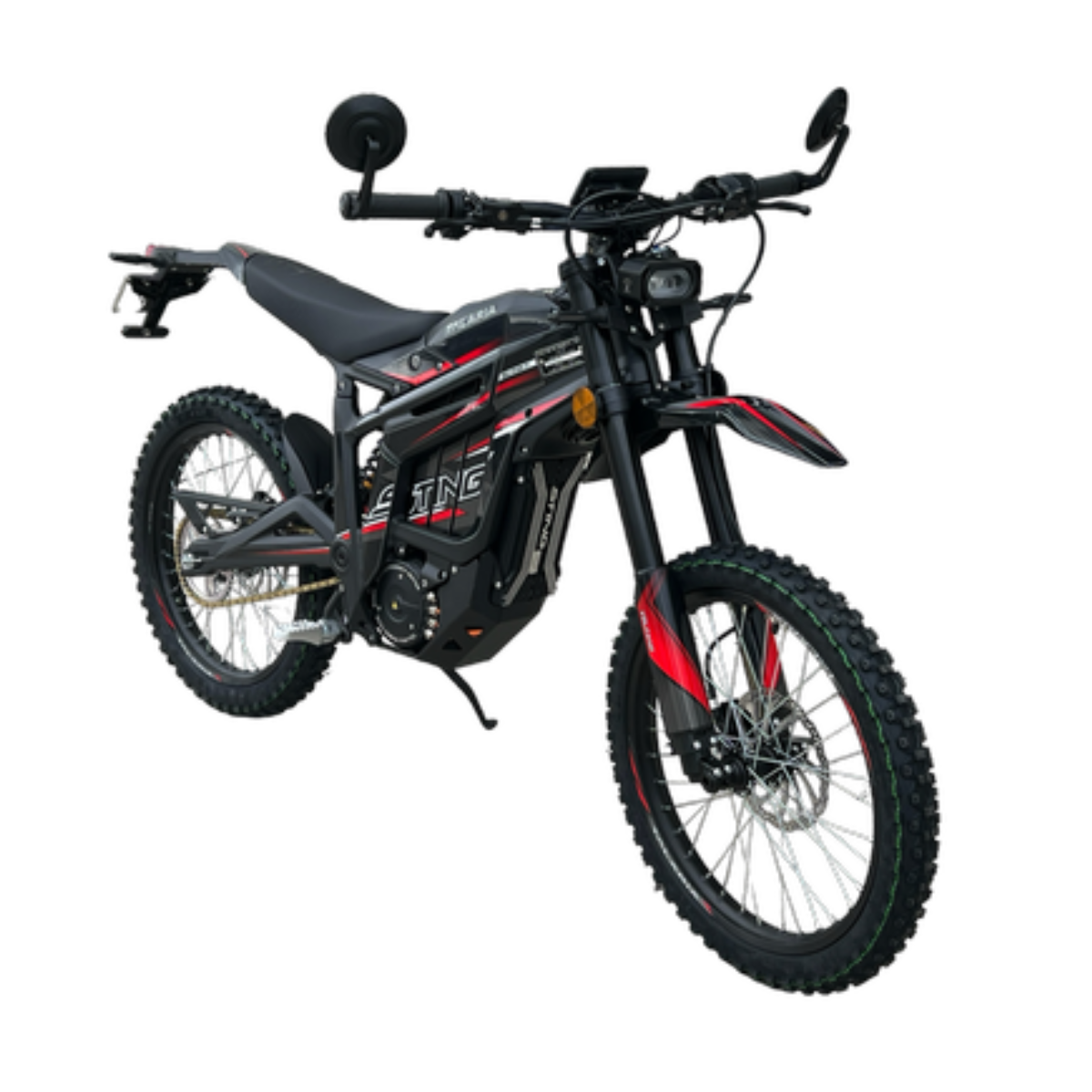

Talaria Sting L1E Electric ADR Road Bike Talaria Fork 2024 Edition
$8,000.00
Buyer information
First service is free with every Electric Bike or Electric Scooter purchase. 300km or 6-8 weeks.
*Each state and territory in Australia has a different set of rules and regulations pertaining to the usage of e-Scooters / E-Bikes or E-Motos (including where these types of products can legally be used and whether they need to be registered with the relevant road traffic authority). It is the responsibility of the user to ensure that they check and abide by their local laws and use responsibly.
Eazybikes Australia do not take any responsibility for the use of eScooters/E-Bike or E-motos in Australia. Have fun but ride with caution and always wear a helmet.
Please note this item can only be sold in Western Australia.
The Talaria STING electric dirt bike was born to bring cutting edge performance to all riders. It features a CAD designed light weight frame design, a powerful electric motor delivering instant torque, transferred through an intelligent gear drive whilst operating extremely quietly. Its compact well balanced structure is very easy to manoeuvre, and requires minimal maintenance. All these features make STING an ideal off-road bike for more people than ever to enjoy the passion and thrill of off-road riding adventures.
POWER PACK : STING is powered by an impressive 60V 38Ah lithium-ion power pack, which is 2280 watt-hours, and easily swappable. The power packs can be exchanged with another fully charged power pack in seconds for limitless range. With electric automobile grade LG 21700 lithium-ion battery cells, state of the art programmed BMS, and optimized internal structure, this battery pack is enabled to ensure the bike brings you safe, hi performance off-road riding.
FRAME ： Cutting-edge engineered frame is pure purpose built, light weight and compact. Using 6061 aluminum alloy, and superior forging process by 6000 tons of pressure, the frame is qualified to assure you a safe, fun and fearless riding experience through even the toughest terrains.
CONTROLLER : With the high-quality appropriative hardware, superb layout, and ingenious programming, the controller is enabled to have an extraordinary ability for transient current impact resistance, ultra strong anti - interference, high-precision EABS voltage and discharge current control, error inspection, high and low temperature protection, anti-runaway, and smart energy regeneration. This guarantees to bring the rider a powerful, exciting, and safe riding experience with a respectable range.
POWERTRAIN ：The customized combination powertrain design is just perfect for the light weight electric MX bike. The high efficiency brushless permanent magnet synchronous mid-drive motor, with top-class magnet material and advanced processing, is available to output 34N.m peak torque, as well as to have 284N.m peak torque to the rear wheel. With exquisitely crafted high accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive systems. It’s time to say goodbye to that broken belt anxiety.
DASH ：The dash features a high-contrast OLED display, this will offer riders a clear data display with low power consumption. With CAN communication, the dash is available to have data transfer with the battery pack’s BMS and the motor controller. The display menu provides a range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and more. The dash is also adjustable to allow different settings for different wheel size, sprocket size, motor regen levels, and change between KM/H and MPH to enhance the compatibility of the bike.
THROTTLE : The Sting uses a unique gear twist structure design, the core parts of the throttle can be well protected, even if the throttle tube suffers some impact damage, the throttle is still workable. And with the automobile level encoder, the throttle can enable the rider to control the acceleration with ease. It’s a specialized product and fantastic for an electric off-road bike.
Advertised price does not include On Road Costs
SPECIFICATIONS
|
Chassis - Swing Arm Material |
6061 T4 & T6 Aluminium Alloy |
|
Top Speed |
75km/h |
| Chassis Construction Method |
Forged by 8000 tons pressure |
|
Rear Shock Absorber |
Fastace with Linkage |
|
Tire Size |
Front 70/100-19 / Rear 80/100-19 |
| Max Range | 76km @ 45 km/h |
| Max Load | 100 Kg |
| Speedometer | TFT Digital |
| Transmission | Gearbox + Chain |
| Motor Rated Voltage | 60V (DC) |
| Motor Rated Power / Peak Power | 3000w / 6000w |
| Motor Rated Torque / Peak Torque | 8.5 n.m / 31.8 n.m |
| Motor Shaft Output Torque @ 1000RPM | 29.5 n.m |
| Motor Peak Efficiency | 96.60% |
| Motor Type | PMSM (Permanent Magnet Synchronous Motor) |
| Motor Mounting Position | Centre Frame |
| Motor Weight | 7 Kg |
| Motor External Diameter | 180mm |
| Motor Axial Length | 130mm |
| Motor Cooling Method | Air Cooled |
| Controller Type | FOC |
| Controller Weight | 1.6 Kg |
| Controller Dimension | 240mm x 110mm x 50mm |
| Controller Traveling Wave Current | 85A |
| Controller Highest Temperature | 100 °C |
| Controller Peak Efficiency | 98.50% |
| Powertrain Rated Rotation Speed | 4300 RPM |
| Powertrain Range of Rotation Speed | 0-5300 RPM |
| Powertrain Peak Efficiency | 98% |
| Powertrain Range of Efficiency (≥80%) | 1.4 nm - 22.5 n.m |
| Battery | 60V 38.4A Lithium LG Cells |
| Battery Life Time | 800 Cycles before battery looses capacity |
| Charger | 10A 60V |
| Charging Time | 4 Hours |
| Chassis Weight | 9.5 kg |
| Chassis Surface | Anodizing Paint Treated |
| Headlight | LED |
| Fork | Talaria Factory Fork |
| Wheel Type | Spoke Wheels19x1.6 |
| Tire | CST |
| Brakes | 4-Piston Calliper Hydraulic Brakes |
| Brake Disc | 203mm |
| Net Weight | 58 Kg |
| Min. Ground Clearance | 270mm |
Service Intervals -
First Service: 185 Miles (300 KM) or 3 months*
Second Service: 620 miles (1000 KM) or 6 months*
Third Service: 1240 Miles (2000 KM) or 12 months*
Fourth Service: 1865 Miles (3000 KM) or 24 months*
Fifth Service: 5th Service 2485 miles (4000 KM) or 36 months*
Then every 620 Miles (1000 KM) or 12 months*
